Rinnai's new Infinity PLUS is a custom made water heating solution that brings together multiple units of our award winning HDC range of condensing continuous flow water heaters into single, easy to handle modules.
The Infinity PLUS system incorporates condensing water heaters, skid systems with cable trays, pipe work and electrical connections providing the complete pre-fabricated turn key solution. All that is need is the final connections to the associated services.
Infinity PLUS has been developed to guarantee the maximum amount of affordable, ecologically friendly, safe temperature controlled hot water required at any one time by even the most demanding commercial user.
Each Infinity PLUS module comprises either two or three HDC units and as any number of modules can be manifolded, the capacity is infinite even where demand for instantaneous hot water peaks massively at certain times of the day
Note:
Common header flue kits are available to further streamline installation. Contact Rinnai for more details.
ONLY Rinnai Offers You The Complete Commercial Package:
- Largest capacities on the market
- Near mains pressure flow
- CE and WRAS approved
- Low NOx emissions
- Can be set for temperatures as high as 85°C. Heavy duty heaters are ideal for nursing homes, commercial kitchens, hotels, sports clubs etc,as well as domestic situations in larger houses
- Common header flue kits are available to further streamline installation
An optional electronic control system can link each heater, turning each one on as required.
The system automatically evens out the work load between units to minimise wear and tear.
If pipework warrants a secondary return system, this can be achieved by setting the temperature of the water at 65°C.
Multiple heaters can be set up in this way for larger installations.
A low temperature re-circulation can be achieved by using an in-line biocide unit with the temperature set at 40 - 43°C.
5 x Manifolded Rinnai HD Units With Sequencing

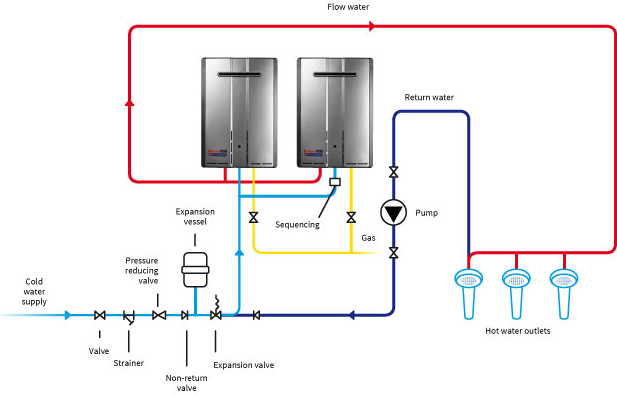

2 x Manifolded Rinnai HD Units Recirculating With Pumped Return On Cold Feed
